Crossing Over Frequencies?!

Have you always been curious about the gigantic speakers in the Pi room? Aidan looked into utilizing these speakers and found that they need an audio crossover to work.

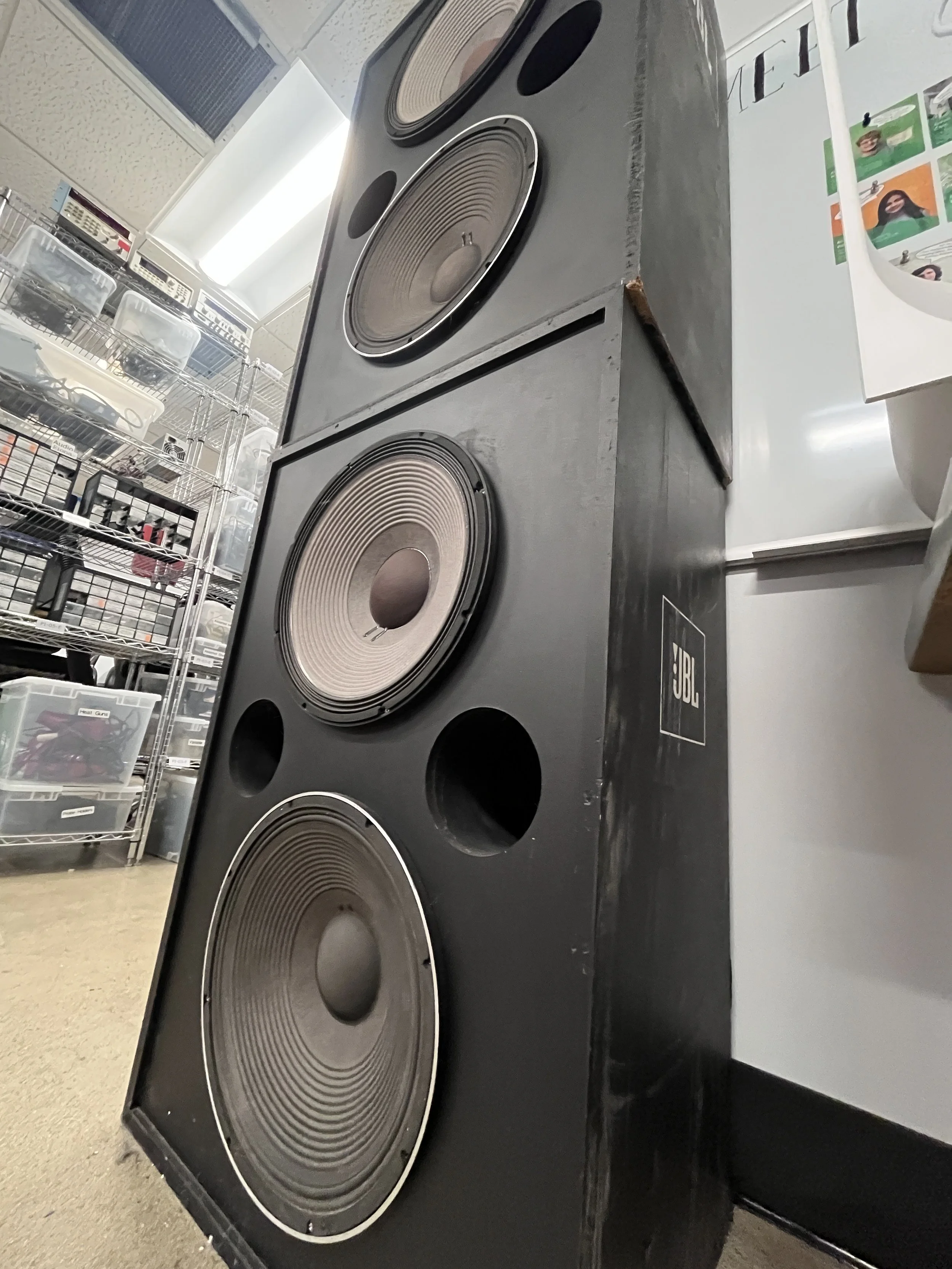

real height of the speakers

What is a audio crossover you may ask(I asked)?

It is a technology that divides a full-range audio signal into its high, mid, and low frequency components, then sending each speaker the appropriate frequencies that it is designed to accurately reproduce.

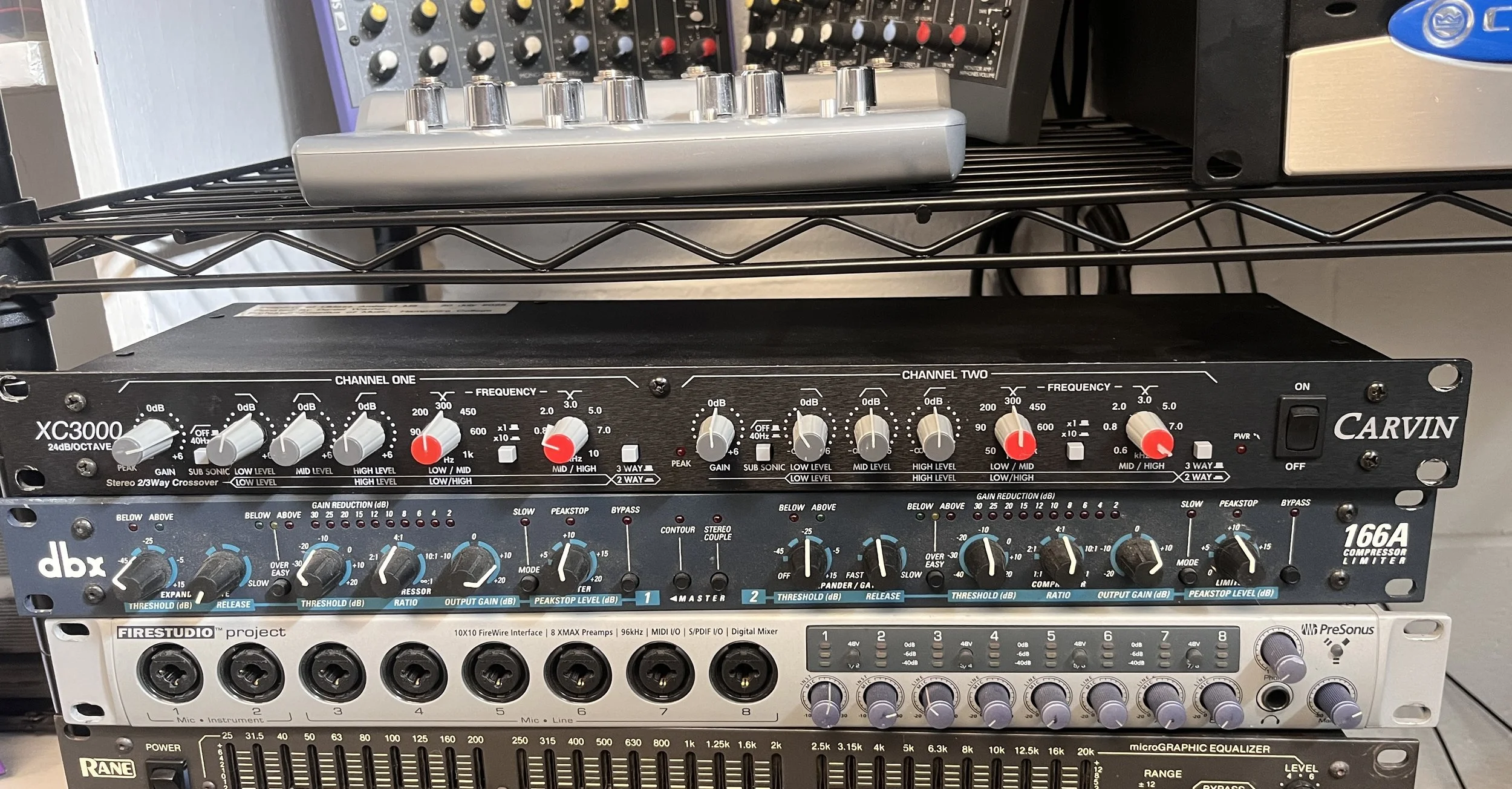

Carvin XC3000 Crossover

After some digging in the ElectronicaLab, Raffy found a Carvin XC3000 Crossover. We tried to connect it to the JBL speakers in the good room, but realized that we need 4 XLR to 1/4’’ F to M cables, 2 for each speaker’s high and low frequency. Unfortunately, we only found 3 of them, and buying a new one would cost about 25 dollars. Fortunately, we found the appropriate connector parts on the parts wall to perform gender swap surgery on the XLR to 1/4’’ M to M cables.

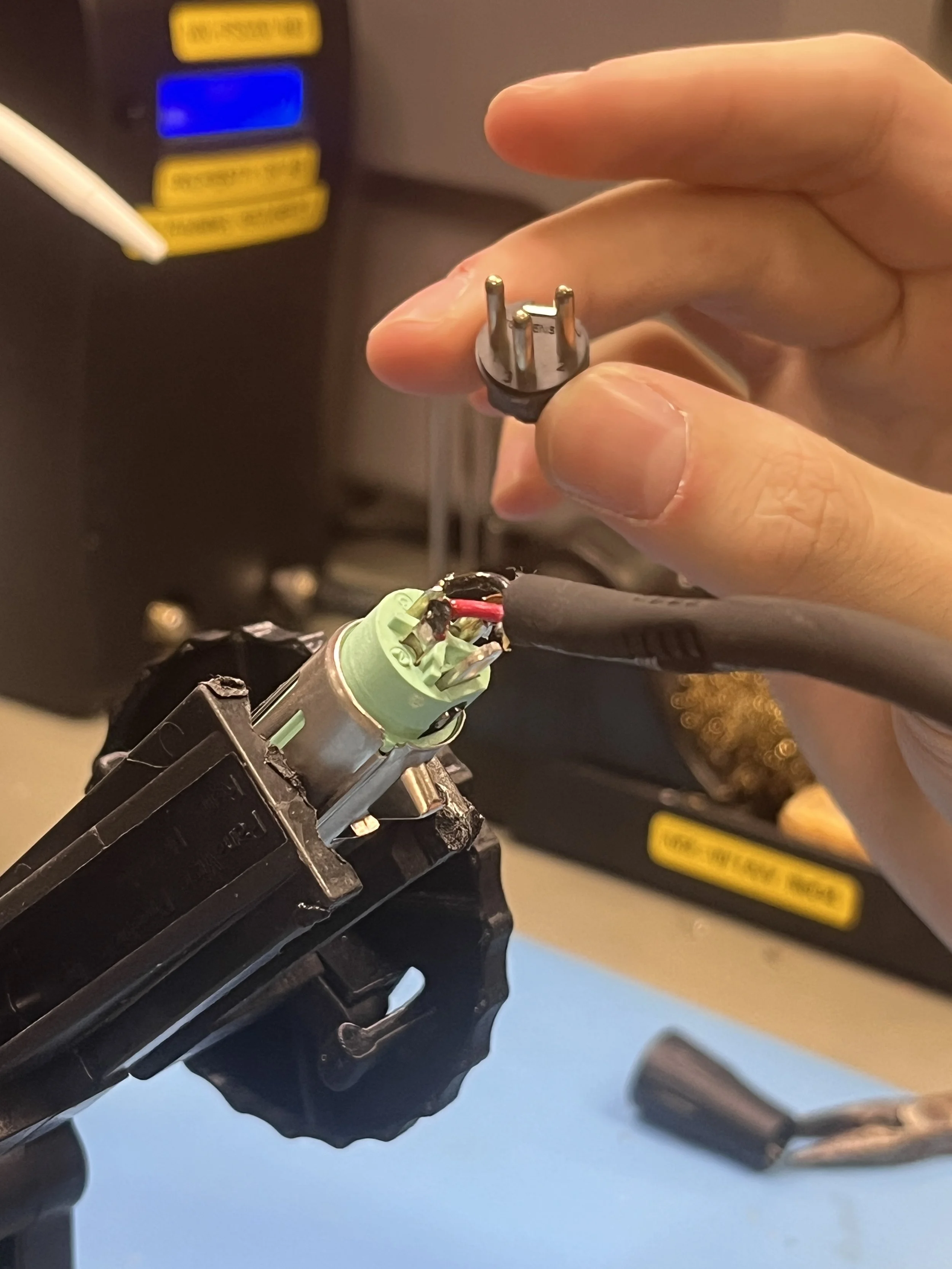

Dr. Chin in surgery

Crossover is finally working now!!

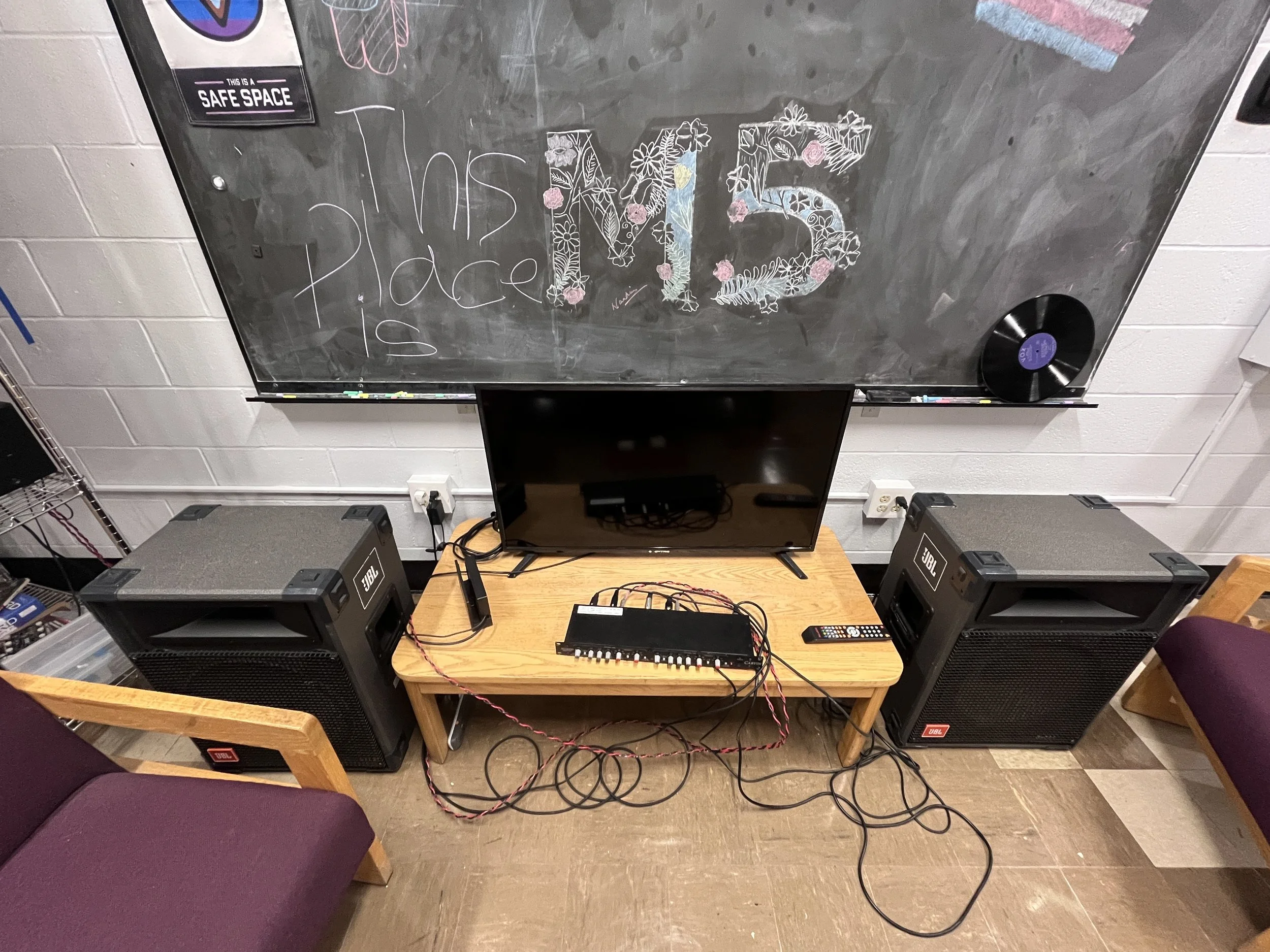

The Setup

There was a very obvious change in audio when we adjusted the low/mid and mid/high frequency selector knobs on the Crossover.

Raffy messing with the knobs
